White & Frederick Kiln

Warrenton, Virginia

[This is page one; go to page two]

Laying out the shape with paper shelves

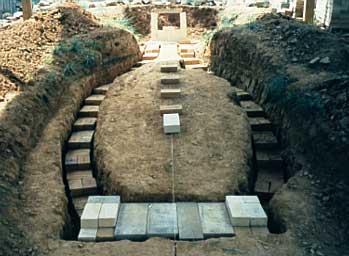

Stepped brick footings on soil


Brick walls corbelled to skew line

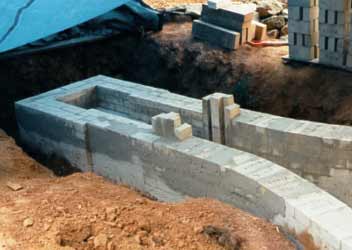

Double damper slots; flue area widening into chimney

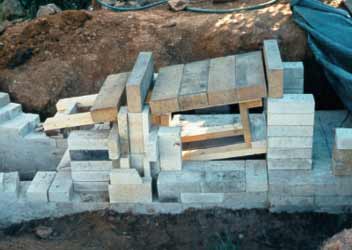

Flue form used to determine castable brick slope


Final layout of sloped flue

One damper for firing; two dampers for shutting tightly


First (of two) door arch layers

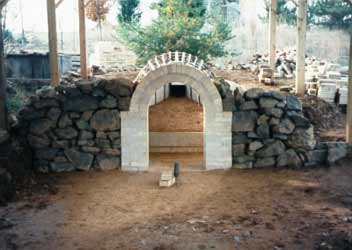

Door and side buttressing for backfill

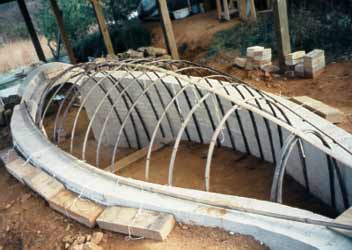

Beginning the arch form.

[Because the form must support a heavy layer of refractory

castable it is "overbuilt" in comparison to the temporary

support needed to hold bricks in place.]

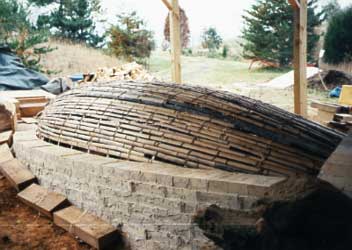

Bamboo form

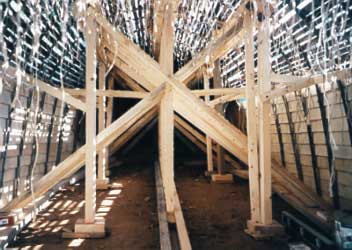

Support framework


Form layers: bamboo, masonite strips, cardboard
